Plot Model Residuals at Homologous Point Locations

Creates a vector plot showing the residual errors of a trained PAI model at the location of the Ground Control Points (GCPs).

Usage

plot_residuals(
  pai_model,
  gcp_data,
  title = "Model Residual Error Vectors",
  subtitle = "Arrows point from predicted to true target locations",
  arrow_color = "darkblue",
  point_color = "blue"
)

Arguments

pai_model: An object of class pai_model from train_pai_model().
gcp_data: An sf object of homologous points, from read_gcps().
title: A character string for the plot's main title.
subtitle: A character string for the plot's subtitle.
arrow_color: A character string specifying the color of the residual arrows.
point_color: A character string specifying the color of the points marking the predicted locations.

Value

A ggplot object, which can be further customized.

Details

This is a crucial diagnostic function for assessing model performance. It answers the question: "What errors did the model fail to correct?"

The function first predicts the correction for each GCP. It then calculates the model's predicted target coordinate for each point. The resulting arrows are drawn starting from this predicted target location and pointing to the true target location.

A perfect model would have zero-length residual vectors. The presence of long arrows or clear spatial patterns in the residuals may indicate that the chosen model was not complex enough to capture the full distortion pattern.

Examples

# --- 1. Load data and train a simple model ---
data(swiss_cps)
# A helmert model is used as it will leave significant residuals.
helmert_model <- train_pai_model(swiss_cps, method = "helmert")
#> Fitting Helmert transformation...

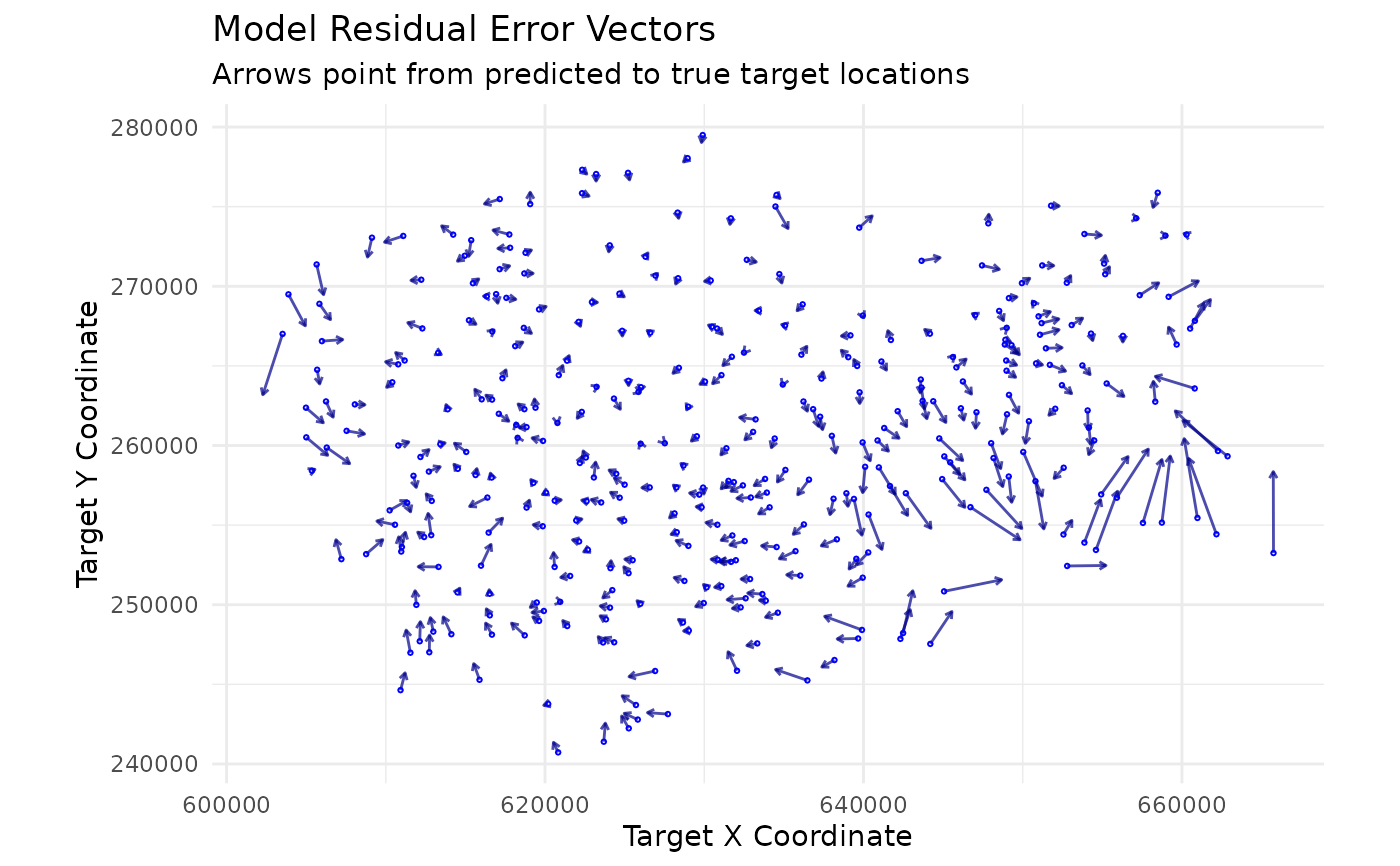

# --- 2. Plot the residuals with default colors ---
plot_residuals(helmert_model, swiss_cps)
#> Calculating model residuals...

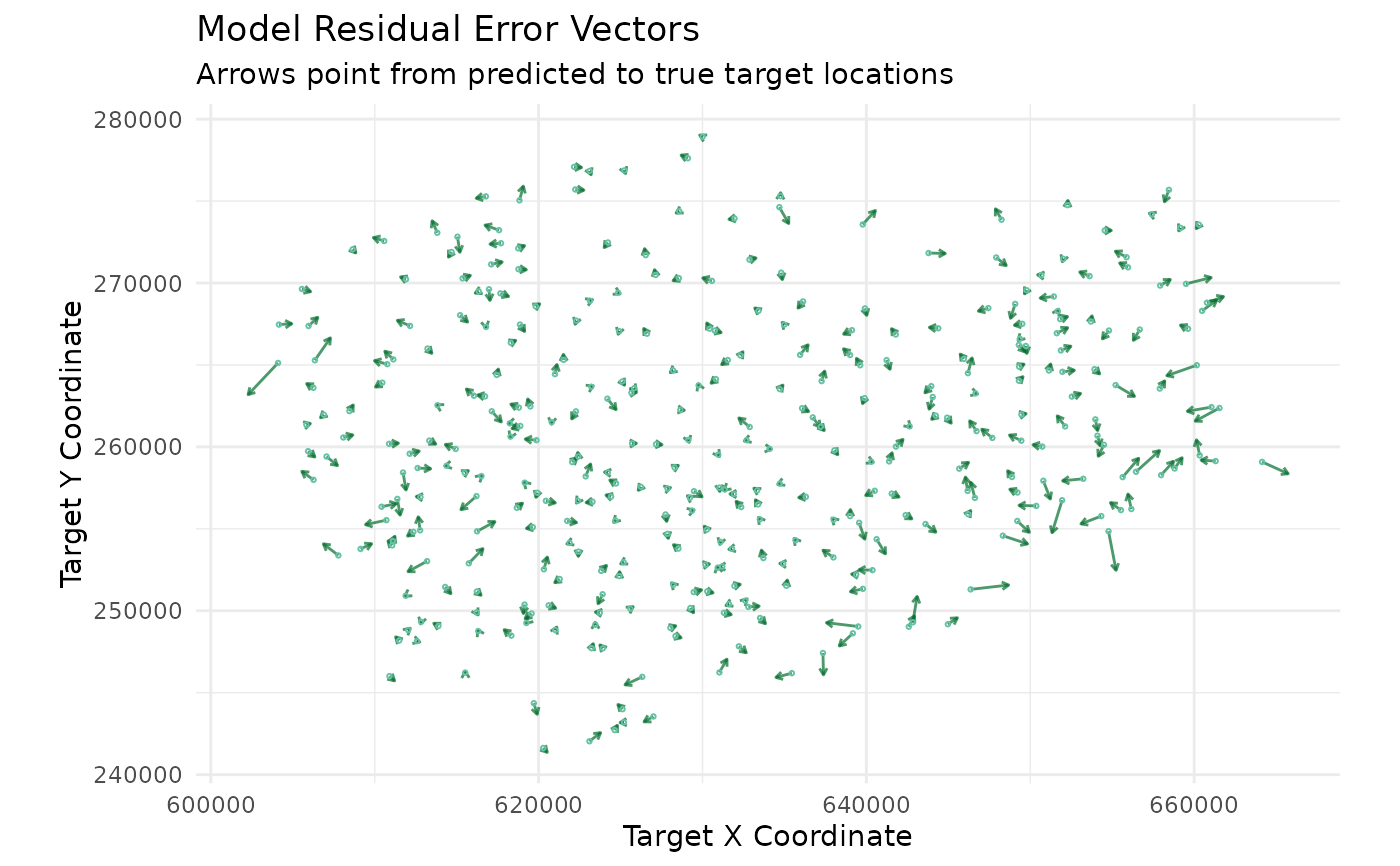

# --- 3. Compare with a more advanced model ---
  gam_model <- train_pai_model(swiss_cps, method = "gam")
#> Training 'gam' model...

# The residuals for the GAM model should be much smaller and more random.
plot_residuals(gam_model, swiss_cps,
               arrow_color = "#006d2c", # A dark green
               point_color = "#66c2a5"  # A lighter green
)
#> Calculating model residuals...
