Perform a Differential Distortion Analysis — analyze

Computes a comprehensive set of detailed distortion metrics for a PAI model at specified locations, based on Tissot's indicatrix theory.

Usage

analyze_distortion(pai_model, points_to_analyze, reference_scale = 1)

Arguments

pai_model: A model object of class pai_model from train_pai_model().
points_to_analyze: An sf object of points where the analysis should be performed.
reference_scale: A single numeric value used to normalize the area scale calculation. Defaults to 1 (no normalization).

Value

An sf object containing the original points and new columns with all calculated distortion metrics:

a, b: The semi-major and semi-minor axes of the Tissot indicatrix.
area_scale: The areal distortion factor (a * b).
log2_area_scale: The base-2 logarithm of area_scale, a symmetric metric centered at 0.
max_shear: The maximum angular distortion in degrees.
max_angular_distortion: The maximum angular distortion in radians (the 2Omega metric).
airy_kavrayskiy: The Airy-Kavrayskiy measure, a balanced metric combining areal and angular distortion.
theta_a: The orientation of the axis of maximum scale (in degrees).

Details

This function is the core analytical engine of the mapAI package. It implements a differential analysis by calculating the first partial derivatives of the spatial transformation learned by a pai_model. This is achieved using a numerical differentiation (finite difference) method that is universally applicable to all models in the package (lm, rf, gam, helmert).

From these derivatives, it calculates key distortion metrics that describe how shape, area, and angles are warped at every point.

Interpreting Results by Model Type:

The nature of the output is highly dependent on the model used:

gam & tps (Recommended for this analysis): Produce a smooth, differentiable surface. The distortion metrics will be spatially variable and provide a rich, meaningful understanding of how distortion changes across the map.
helmert & lm: Represent global transformations. The distortion metrics will be constant for every point.
rf: Creates a step-like surface. The local derivatives may be effectively zero, resulting in metrics indicating no local distortion (e.g., area_scale = 1, max_shear = 0).

Examples

# This example showcases the full analytical workflow.

library(magrittr)

# --- 1. Load data and train a GAM model ---
data(gcps)
gam_model <- train_pai_model(gcps, method = "gam")
#> Training 'gam' model...

# --- 2. Create a regular grid of POINTS for analysis ---
analysis_points <- sf::st_make_grid(gcps, n = c(25, 25)) %>%
  sf::st_centroid() %>%
  sf::st_sf()

# --- 3. Run the distortion analysis ---
distortion_results <- analyze_distortion(gam_model, analysis_points)
#> Calculating distortion metrics for gam model...
#> Finalizing metrics from derivatives...
#> Distortion analysis complete.

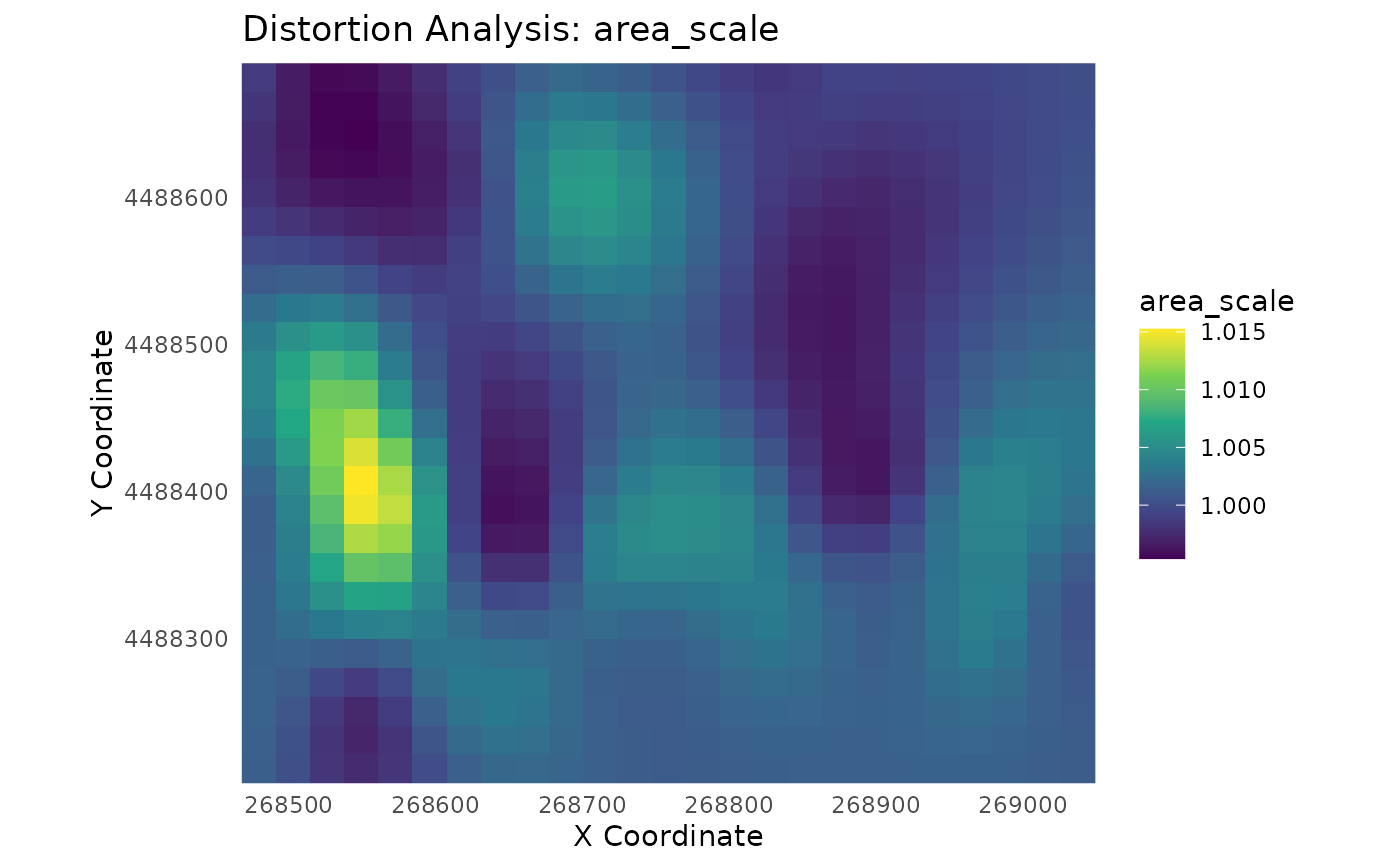

# --- 4. Visualize the area scale ---
plot_distortion_surface(
  distortion_results,
  metric = "area_scale")
#> Regular grid detected. Creating a surface plot with geom_raster().
#> Warning: Raster pixels are placed at uneven horizontal intervals and will be shifted
#> ℹ Consider using `geom_tile()` instead.
#> Warning: Raster pixels are placed at uneven horizontal intervals and will be shifted
#> ℹ Consider using `geom_tile()` instead.
