Plot Tissot's Indicatrices of Distortion

plot_indicatrices.Rd

Visualizes distortion by drawing Tissot's indicatrices (ellipses) at their original source locations.

Usage

plot_indicatrices(
  distortion_sf,
  scale_factor = 1,
  fill_color = "lightblue",
  border_color = "black"
)

Arguments

distortion_sf

An sf object of points returned by analyze_distortion(). It must contain the columns a, b, and theta_a.

scale_factor

A numeric value to control the size of the plotted ellipses for better visibility. You will need to adjust this based on your map's scale.

fill_color

A character string specifying the fill color of the ellipses.

border_color

A character string specifying the border color of the ellipses.

Value

A ggplot object containing the distortion ellipses plotted in the source coordinate space.

Details

This function creates a powerful visual representation of distortion, following the methodology of Boùùaert et al. (2016). It takes the results from analyze_distortion() and draws an ellipse at each analyzed point, centered on its source coordinate. This allows for a direct visual assessment of distortion on the historical map's geographic space.

Each ellipse graphically shows the magnitude and direction of distortion at that location:

  • The shape of the ellipse shows the angular distortion (shear).

  • The size of the ellipse shows the areal distortion.

  • The orientation of the ellipse shows the direction of maximum scale.

Examples

# --- 1. Train a model and analyze distortion ---
data(gcps)
gam_model <- train_pai_model(gcps, method = "gam")
#> Training 'gam' model...
distortion_at_gcps <- analyze_distortion(gam_model, gcps)
#> Calculating distortion metrics for gam model...
#> Finalizing metrics from derivatives...
#> Distortion analysis complete.

# --- 2. Plot the indicatrices ---
# Note that the pai_model is no longer needed. The function plots the
# distortion centered on the source locations from the distortion_sf object.
# The scale_factor needs to be large enough to make the ellipses visible.

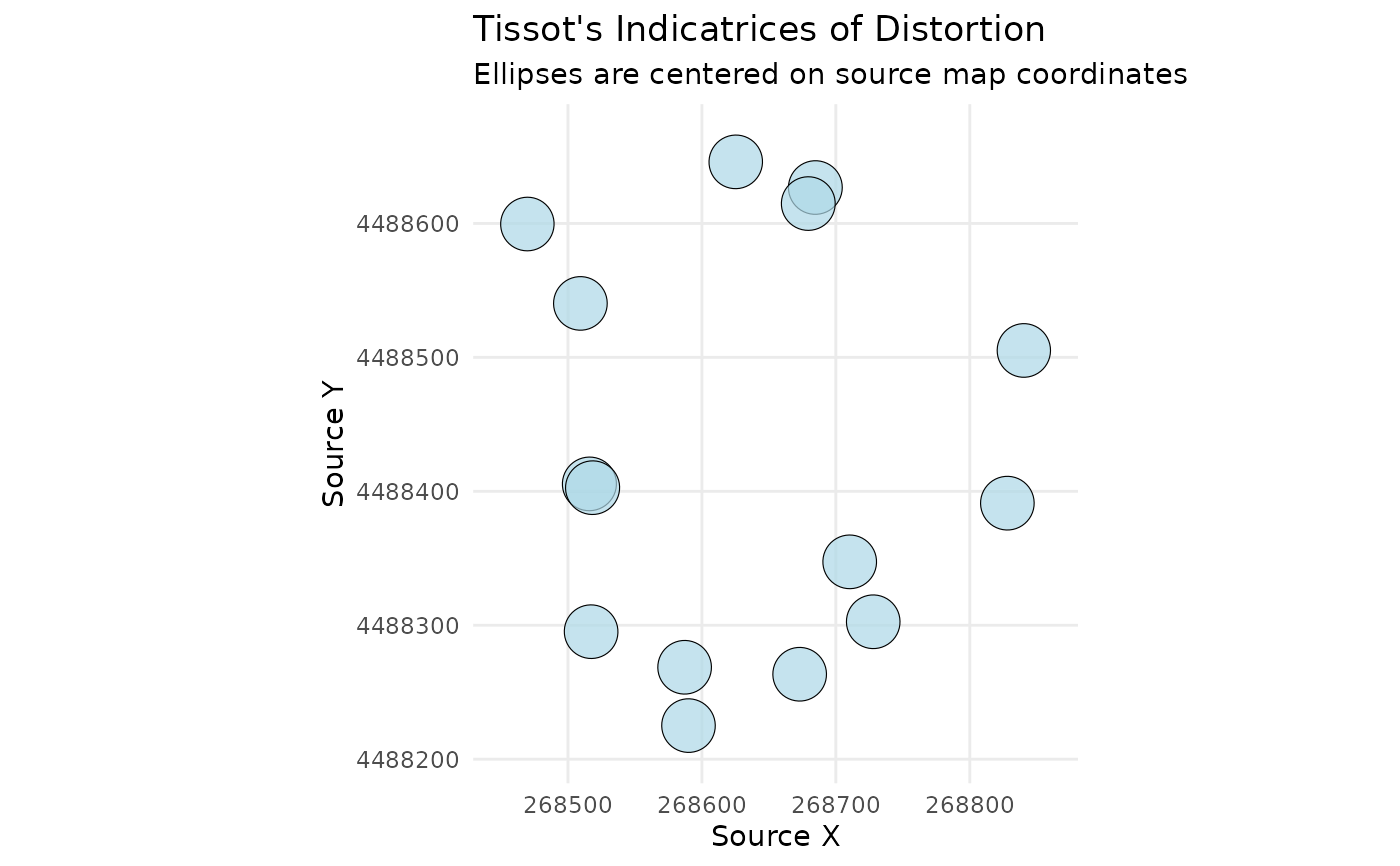

plot_indicatrices(
  distortion_sf = distortion_at_gcps,
  scale_factor = 20
)
#> Generating indicatrix polygons at source locations...
